Description
PRODUCT SPECIFICATIONS:
Compressor Wheel Inducer: 54mm
Compressor Wheel Exducer: 67mm
Compressor Wheel Trim: 65
Compressor Housing Inlet: 3 Inch Diameter
Compressor Housing Outlet: 2 Inch Diameter
Compressor Housing A/R: .70
Turbine Wheel Inducer: 54mm
Turbine Wheel Exducer: 49mm
Turbine Wheel Trim: 84
Turbine Housing A/R:0.72
Horsepower: 350 - 660
Displacement: 1.4L - 3.0L
PRODUCT DESCRIPTION:

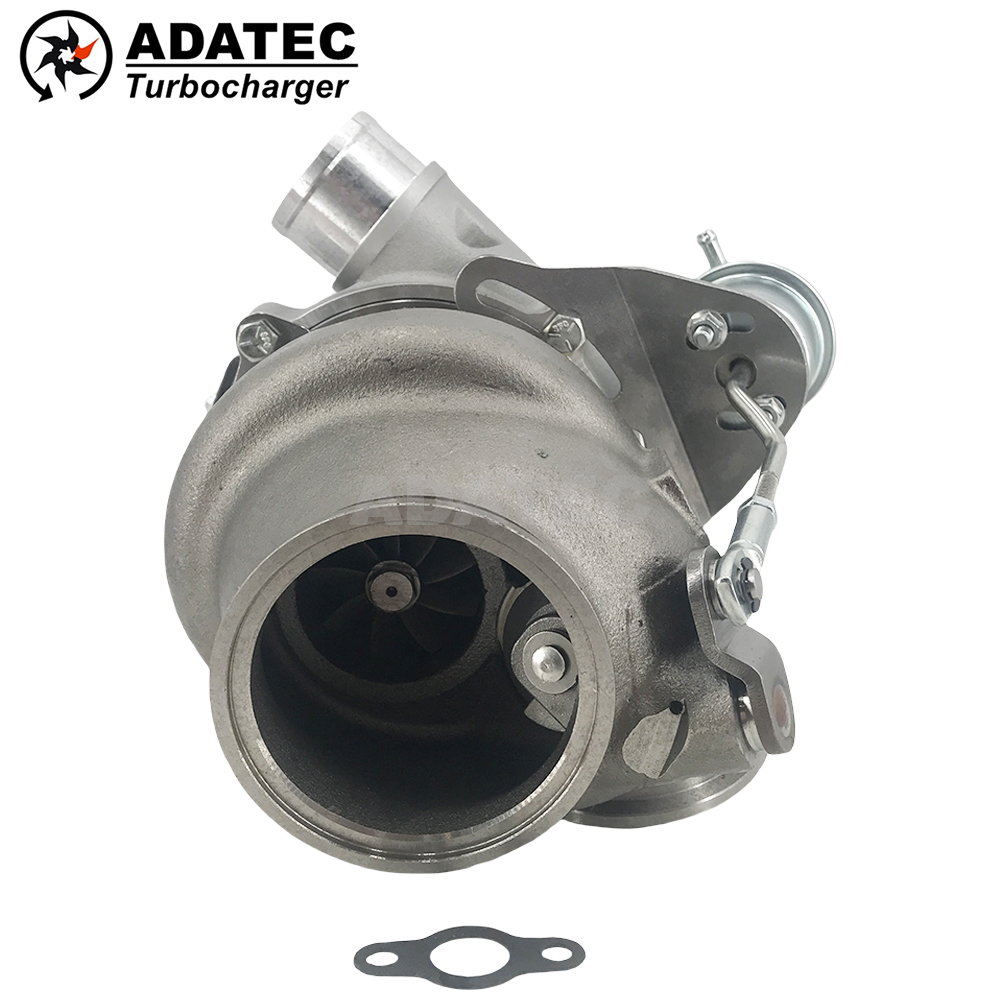

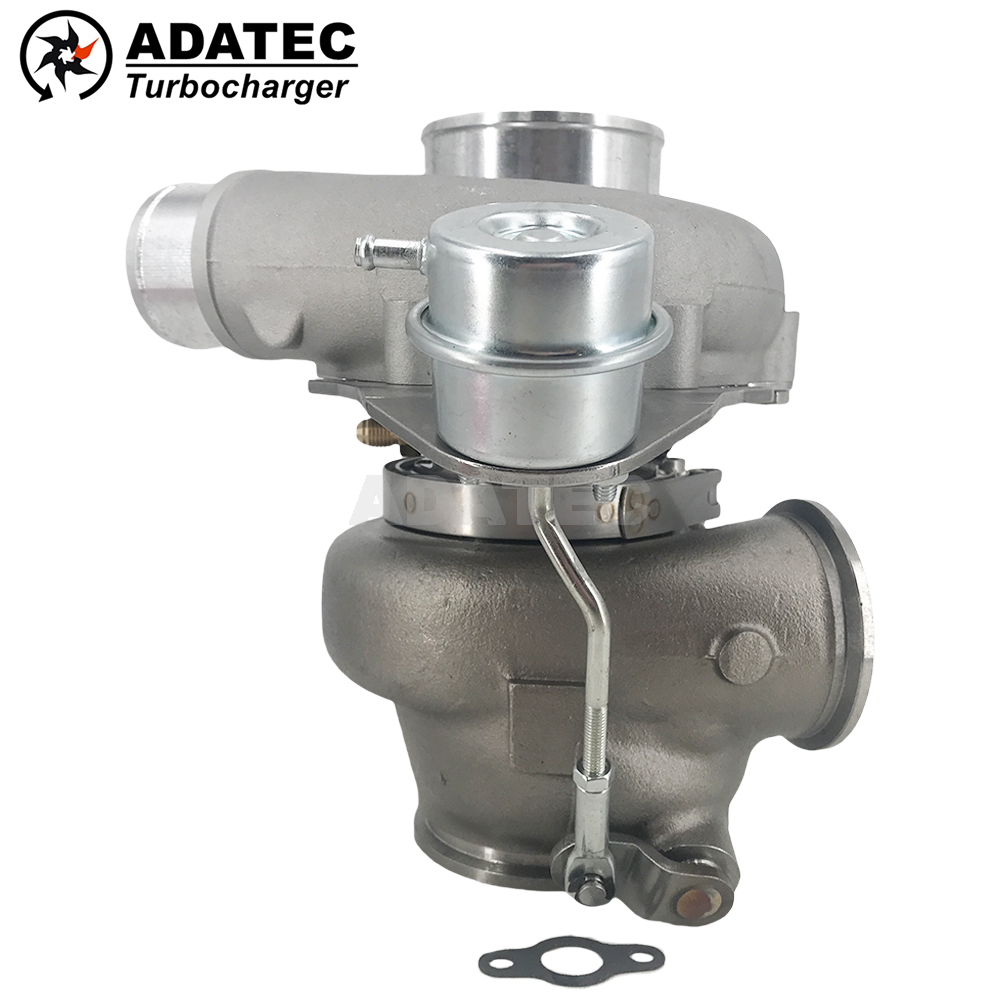

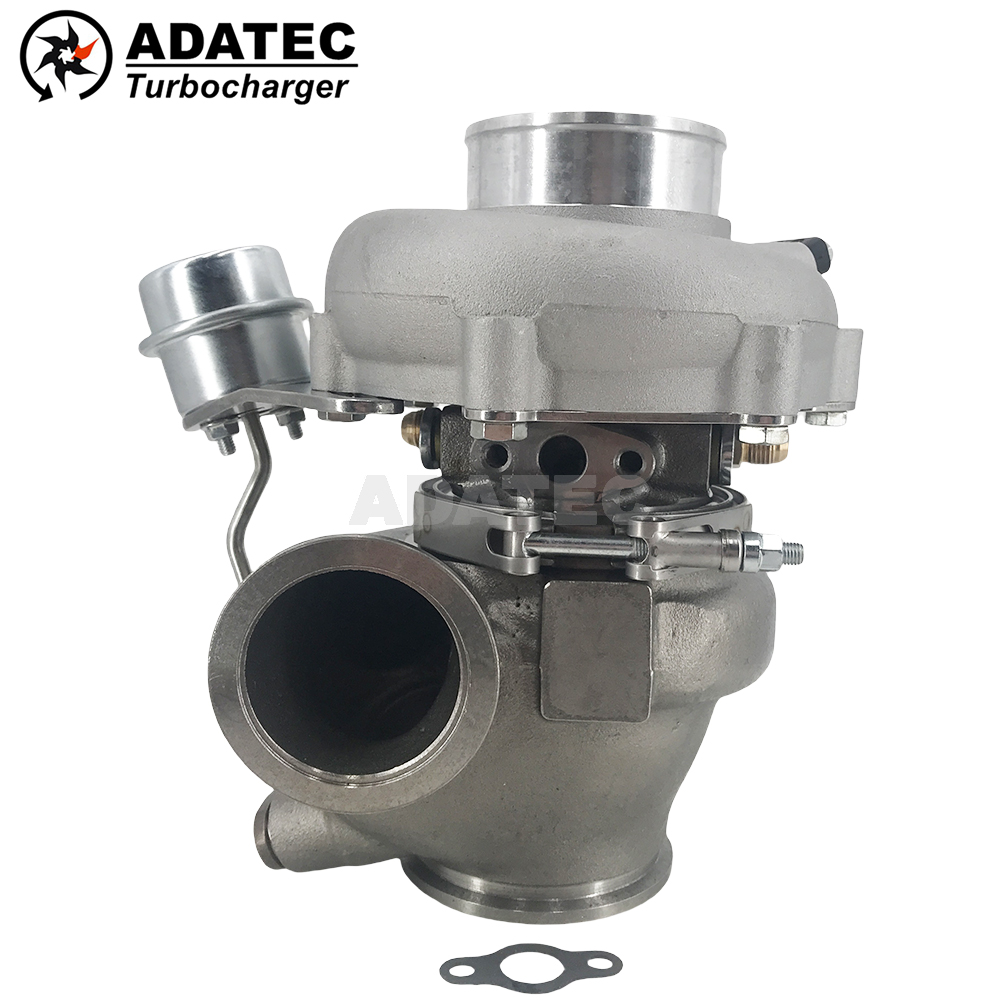

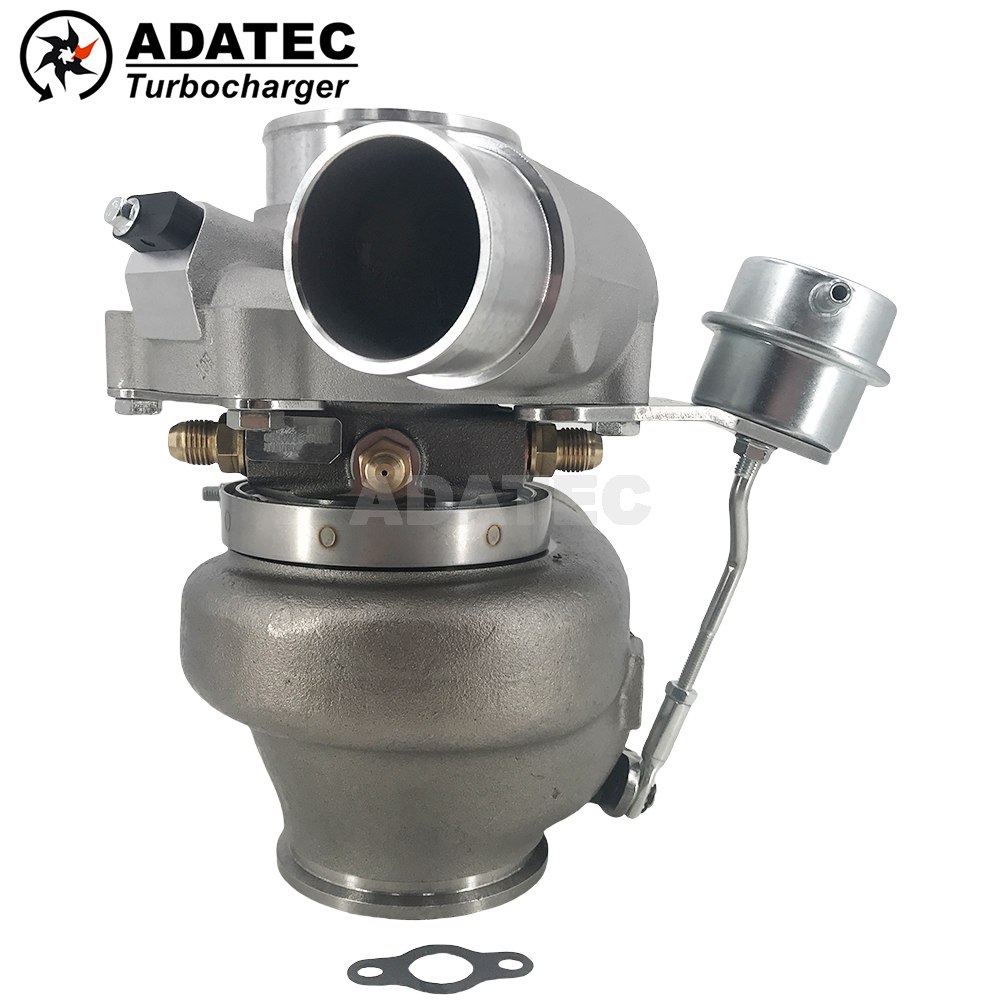

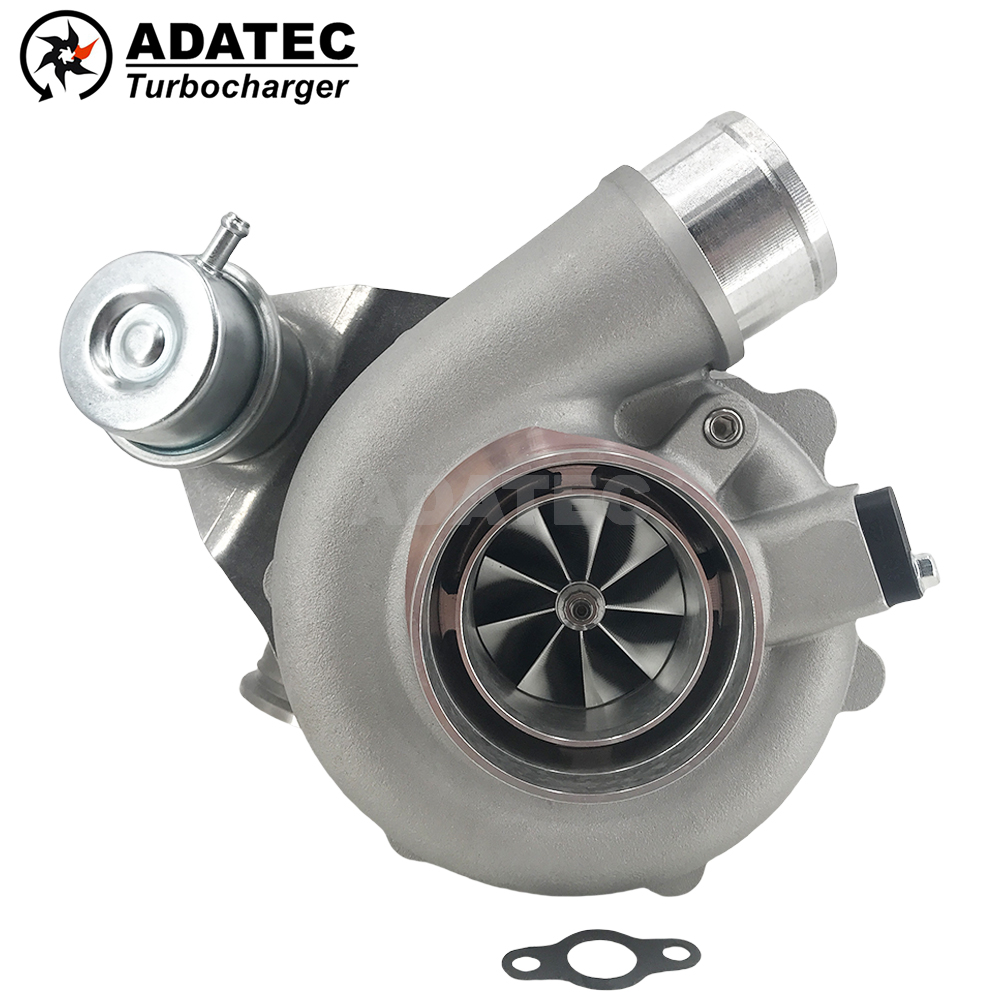

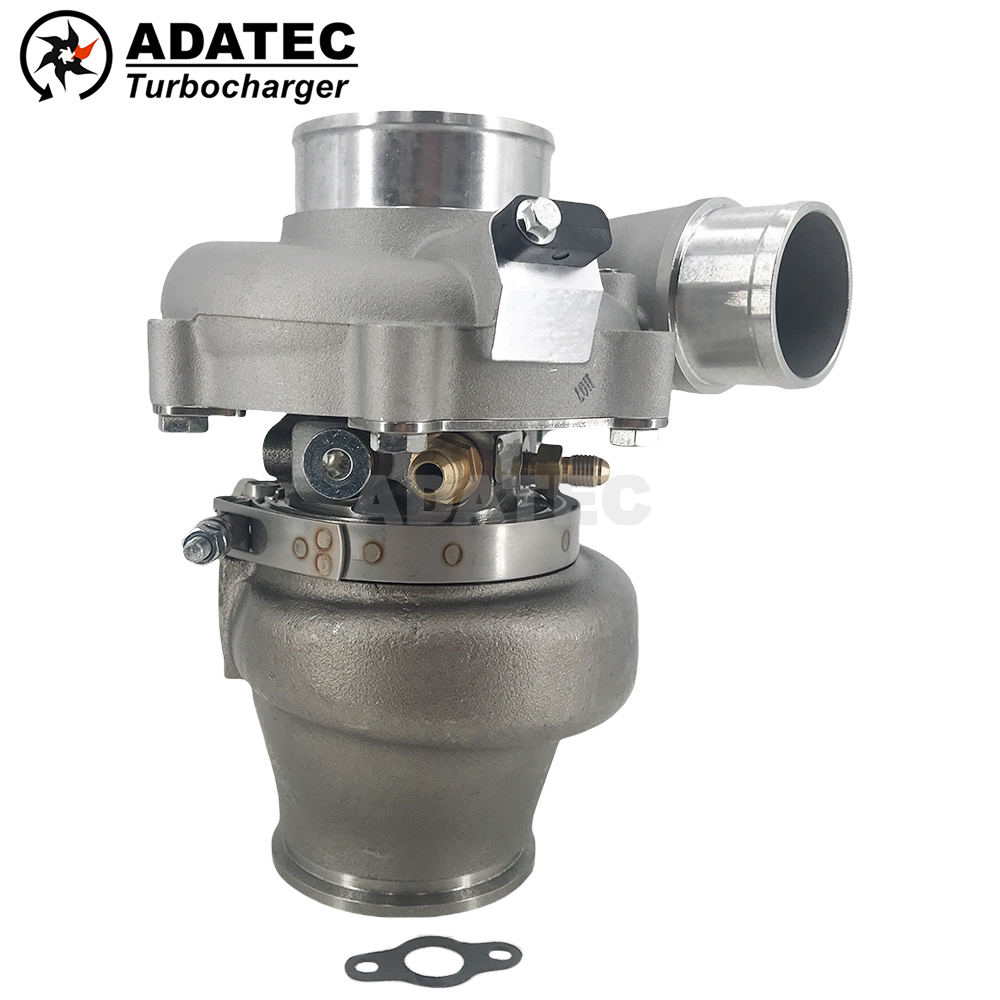

The Garrett G-Series G25-660 advanced small frame ball bearing turbocharger;
Ultra High Flow G-Series Compressor Wheel
Revolutionary aero G-Series Turbine Wheel made from high heat resistance Mar-M Alloy, 1050 Celsius Rating 871389-5010S 871390-5010S
Includes -4AN oil feed fitting and -6AN coolant/water fittings
Where is the part number?
The number is usually found on the compressor housing on a small rectangular part of the housing which is machined flat or on a metal tag attached to the housing. Alternatively,please contact us with your registration number and we will help you identify the correct models.
